Advanced Power Inc.

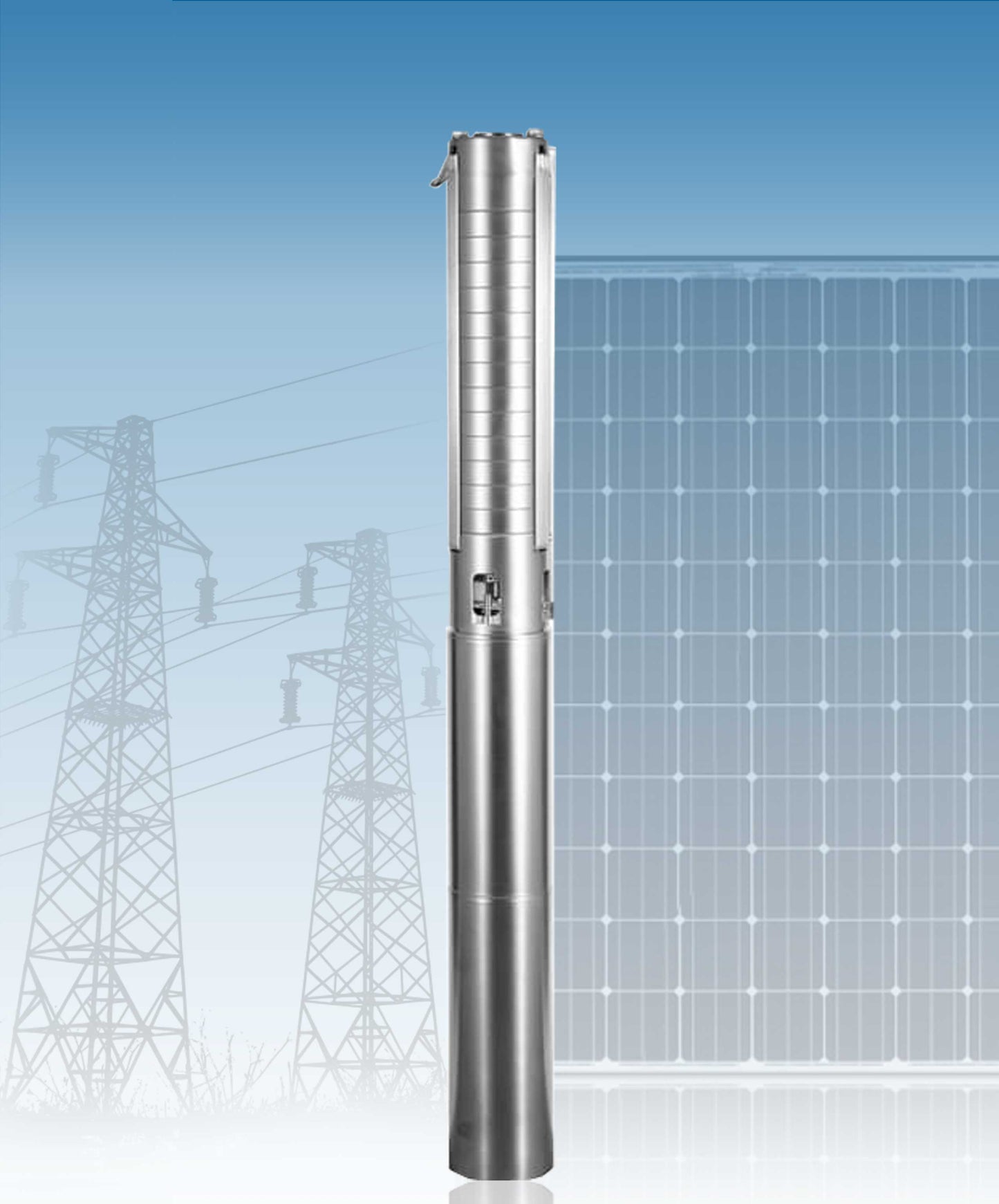

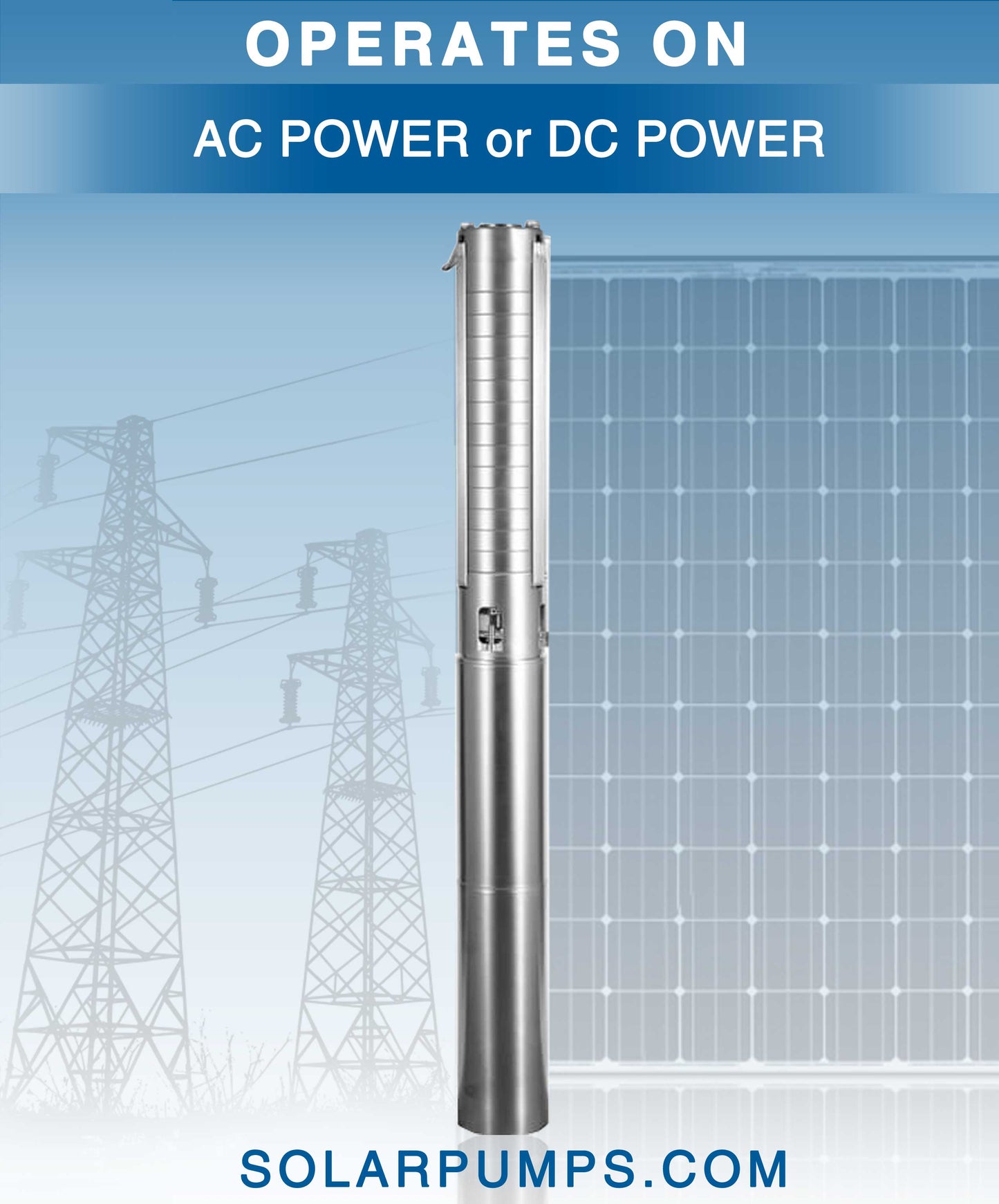

AC/DC Hybrid Centrifugal Pump & 100 Ft. Electrical Cable

AC/DC Hybrid Centrifugal Pump & 100 Ft. Electrical Cable

Regular price $2,275.00
Regular price Sale price $2,275.00
Sale Sold out

Contact a System Specialist with any questions - 1(866) 519-7892

Free Shipping to Continental USA (lower 48 States)

 Features

  • Pump heads are field serviceable/replaceable by customer or OEM!
  • Internal motor controller.
  • High efficiency DC Brushless motor with stainless steel Encapsulated Thrust Bearing.
  • Microcast AISI 304 stainless steel centrifugal wet end includes multistage impellers with rigid motor coupling.
  • Water level sensor included with pump to prevent dry run.
  • Inputs for Tank Level Control (Float switch optional)
  • Battery or Generator Backup Optional (must be 60V DC minimum)
  • Over/under-load protection.
  • Over/under-voltage protection.
  • Over-Temperature Protection.
  • Lost phase and stall protection.
  • Lightening and Surge Protection.
  • Can be used with most switch types (float, pressure switch, etc.) Vertical or horizontal installation up to 90°.
  • Certifications: CE, TUV SUD, UL, ISO9001, ISO14001
  • No solar panels or mounts included

Specifications

  • Motor Power Range: 0.5-3HP
  • Max Input Power: 1800W
  • DC System Input Power
    • Vmp: 60-380 VDC,
    • Voc: 440V (Max Voltage)
    • Imp: 12A
  • AC System Input Power
    • VAC: 1 Phase, 90-240 VAC
    • Imp: 10A

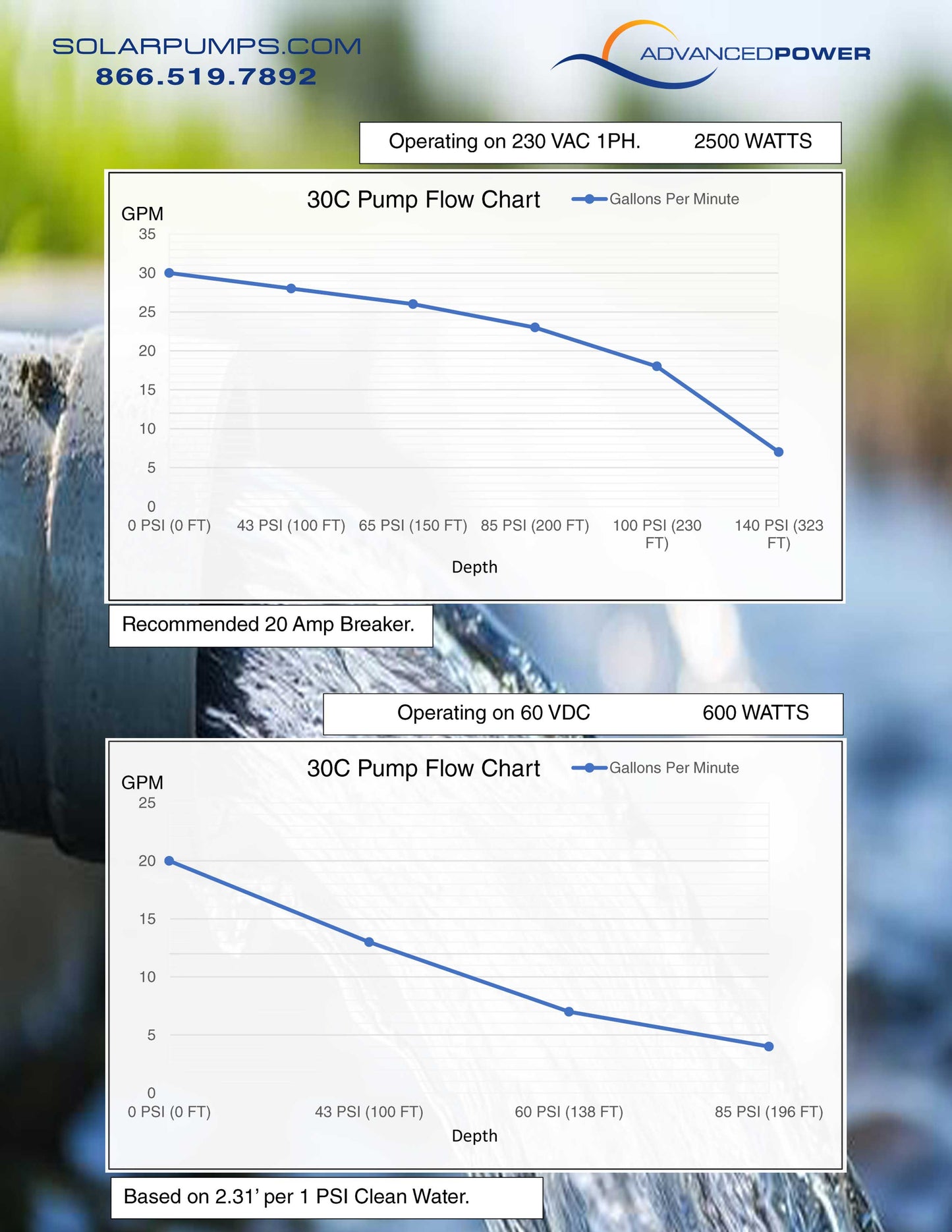

  • 26.8 GPM (Max Flow Rate)
  • Max lift is 380ft (adding pressure tank/switch will alter  max lift)
  • 2 year Manufacturer Defect Standard Warranty
  • 304 stainless steel construction
  • 1-1/4in NPT Female Thread Pump Outlet
  • 100ft Electrical Cable, 10AWG 2+ground
  • In-House Tech Service

Requirements

  • 600W Minimum recommended Input Power
  • 10AWG, 2+ground Electrical Cable
  • Plumbing from pump to final termination point

Considerations

Water conditions and pipe size will alter PSI rating. Hard, dirty water, undersized/kinked pipe, rubber vs. plastic pipe all effect the output performance of the pump/system.

Instruction Manual
