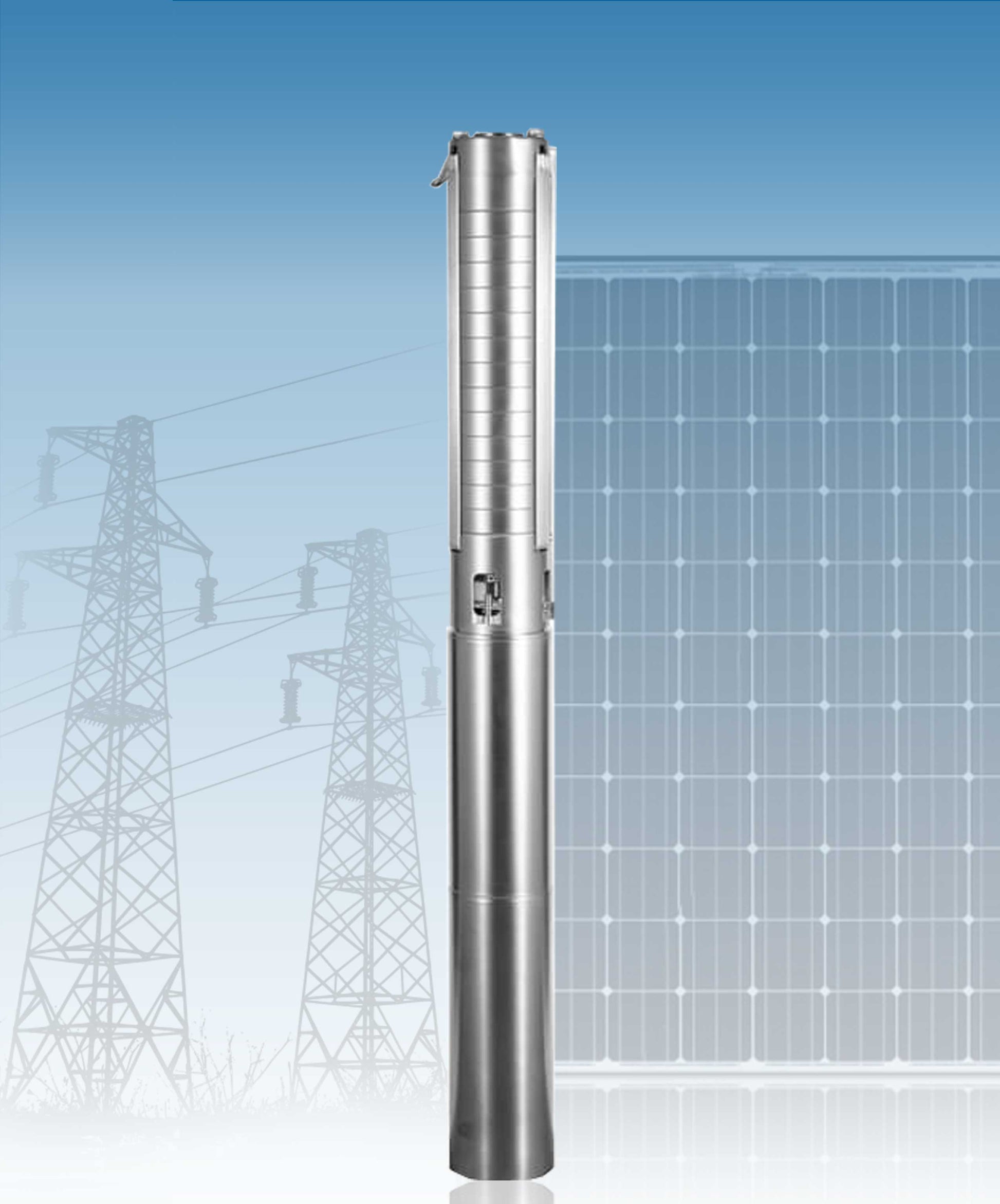

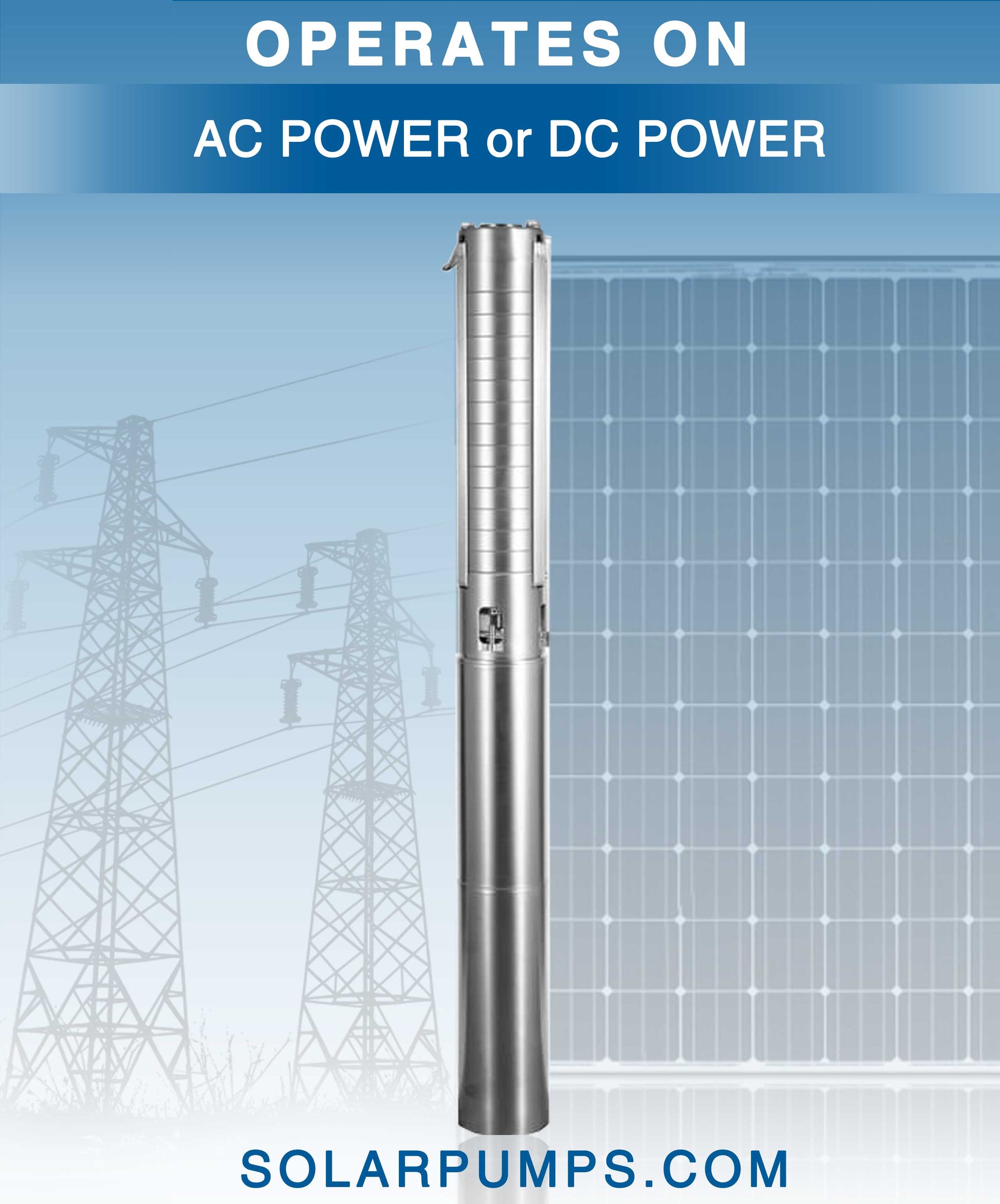

30C AC/DC Hybrid Centrifugal Pump (Pump Only)

Part# 30C

Contact a System Specialist with any questions - 1(866) 519-7892

Free Shipping to Continental USA (lower 48 States)

 Features

• Pump heads are field serviceable/replaceable by customer or OEM!
• Internal motor controller.
• High efficiency DC Brushless motor with stainless steel Encapsulated Thrust Bearing.
• Microcast AISI 304 stainless steel centrifugal wet end includes multistage impellers with rigid motor coupling.
• Water level sensor included with pump to prevent dry run.
• Inputs for Tank Level Control (Float switch optional)
• Battery or Generator Backup Optional (must be 60V DC minimum)
• Over/under-load protection.
• Over/under-voltage protection.
• Over-Temperature Protection.
• Lost phase and stall protection.
• Lightening and Surge Protection.
• Can be used with most switch types (float, pressure switch, etc.) Vertical or horizontal installation up to 90°.
• Certifications: CE, TUV SUD, UL, ISO9001, ISO14001

Specifications

• Motor Power Range: 0.5-3HP

• DC System Input Power
  • Vmp: 60-380 VDC,
  • Voc: 440V (Max Voltage)
  • Imp: 12A
• AC System Input Power
  • VAC: 1 Phase, 90-240 VAC
  • Imp: 10A

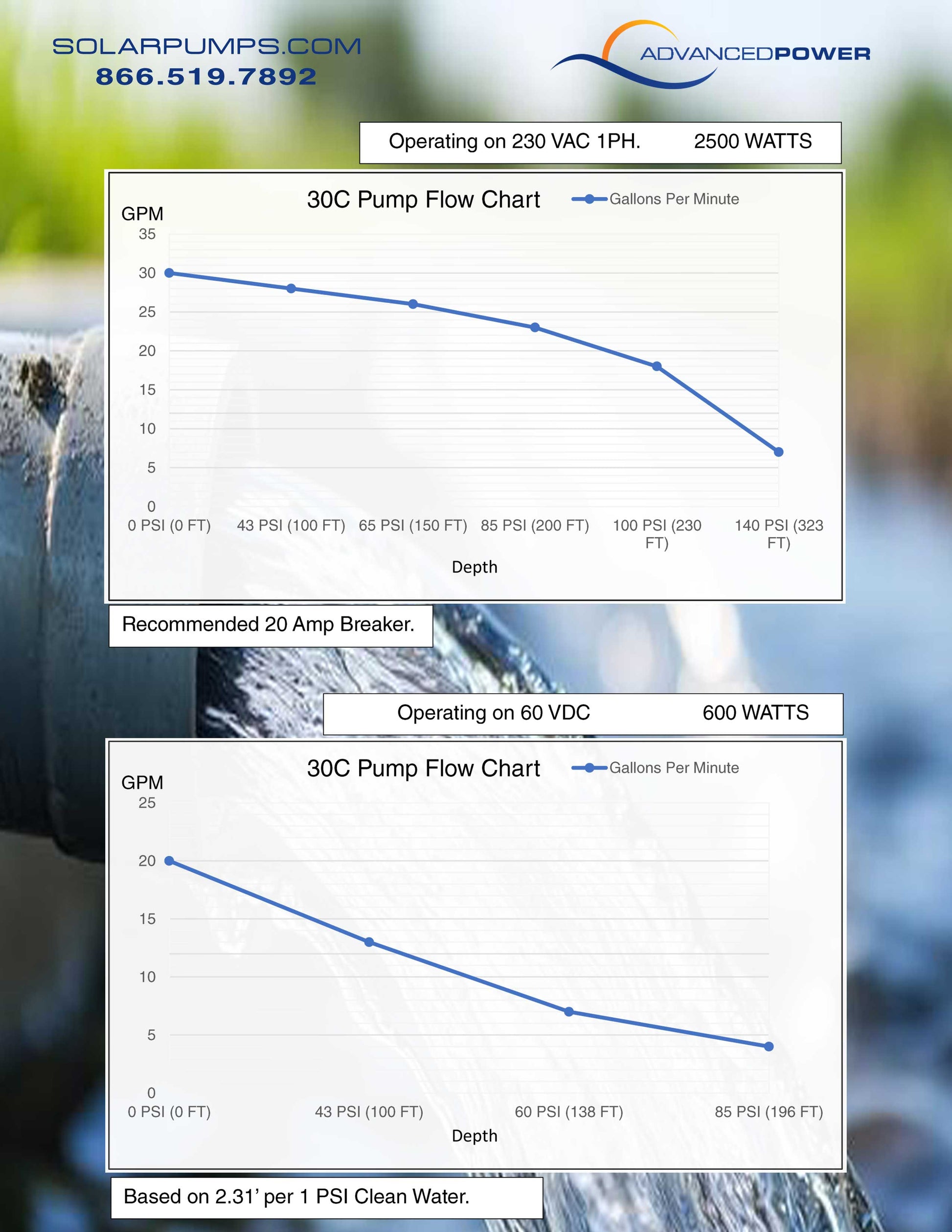

• 26.8 GPM (Max Flow Rate)
• Max lift is 380ft (adding pressure tank/switch will alter  max lift)
• 2 year Manufacturer Defect Standard Warranty
• 304 stainless steel construction

• 1-1/4in NPT Female Thread Pump Outlet
• In-House Tech Service

Requirements

• 600W Minimum recommended Input Power
• 10AWG, 2+ground Electrical Cable
• Plumbing from pump to final termination point

Considerations

Water conditions and pipe size will alter PSI rating. Hard, dirty water, undersized/kinked pipe, rubber vs. plastic pipe all effect the output performance of the pump/system.

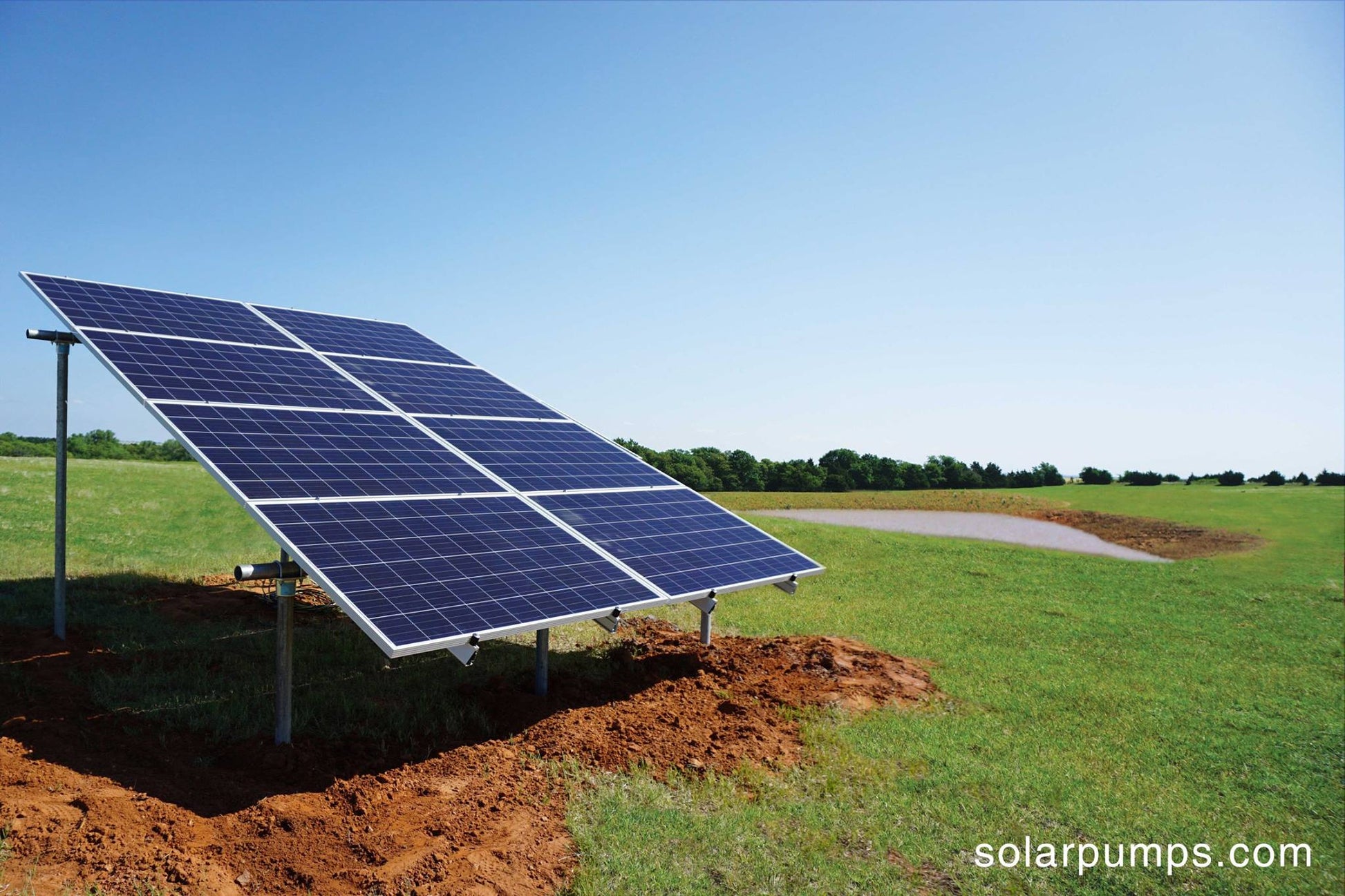

Solar Panels (PV) are available to purchase, we can provide assistance with sizing.
