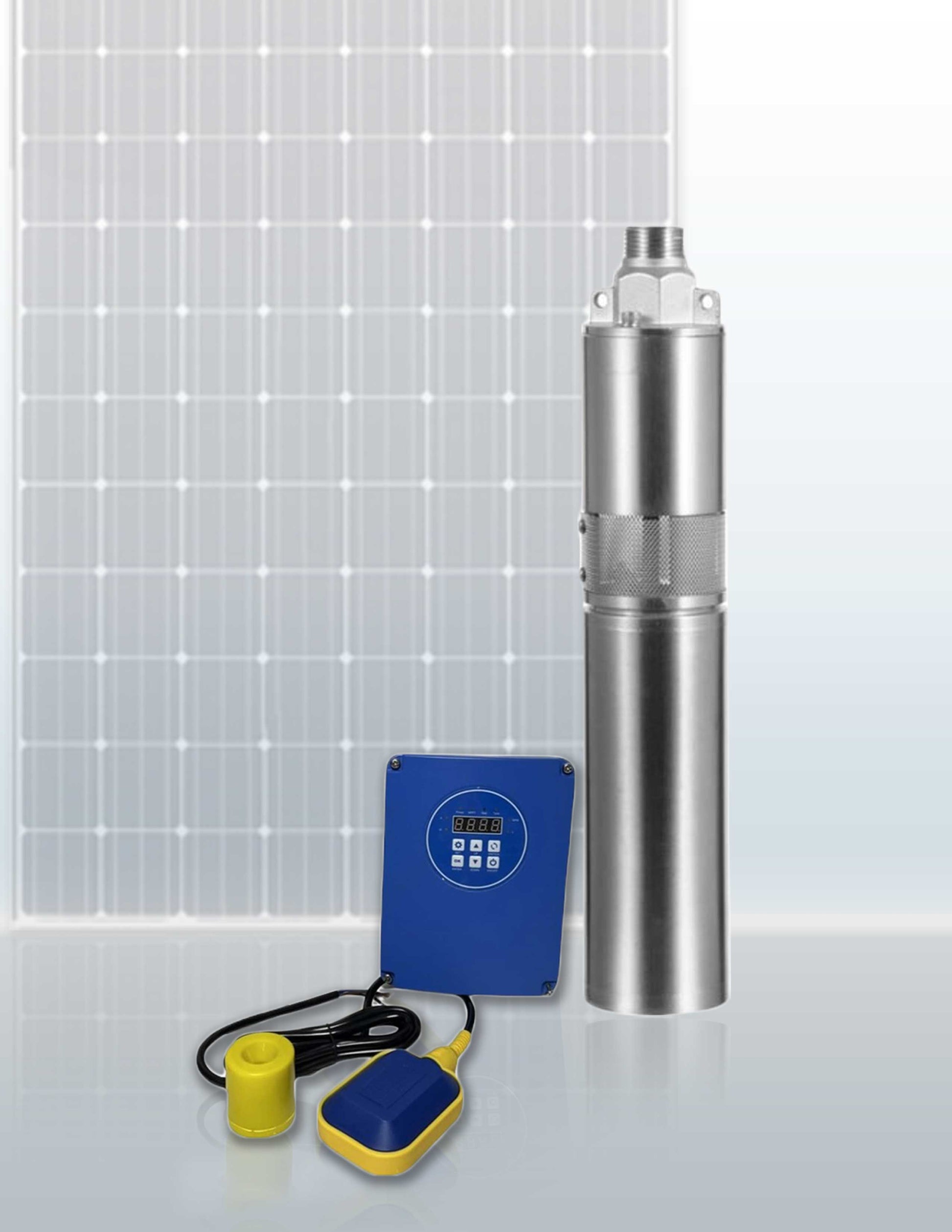

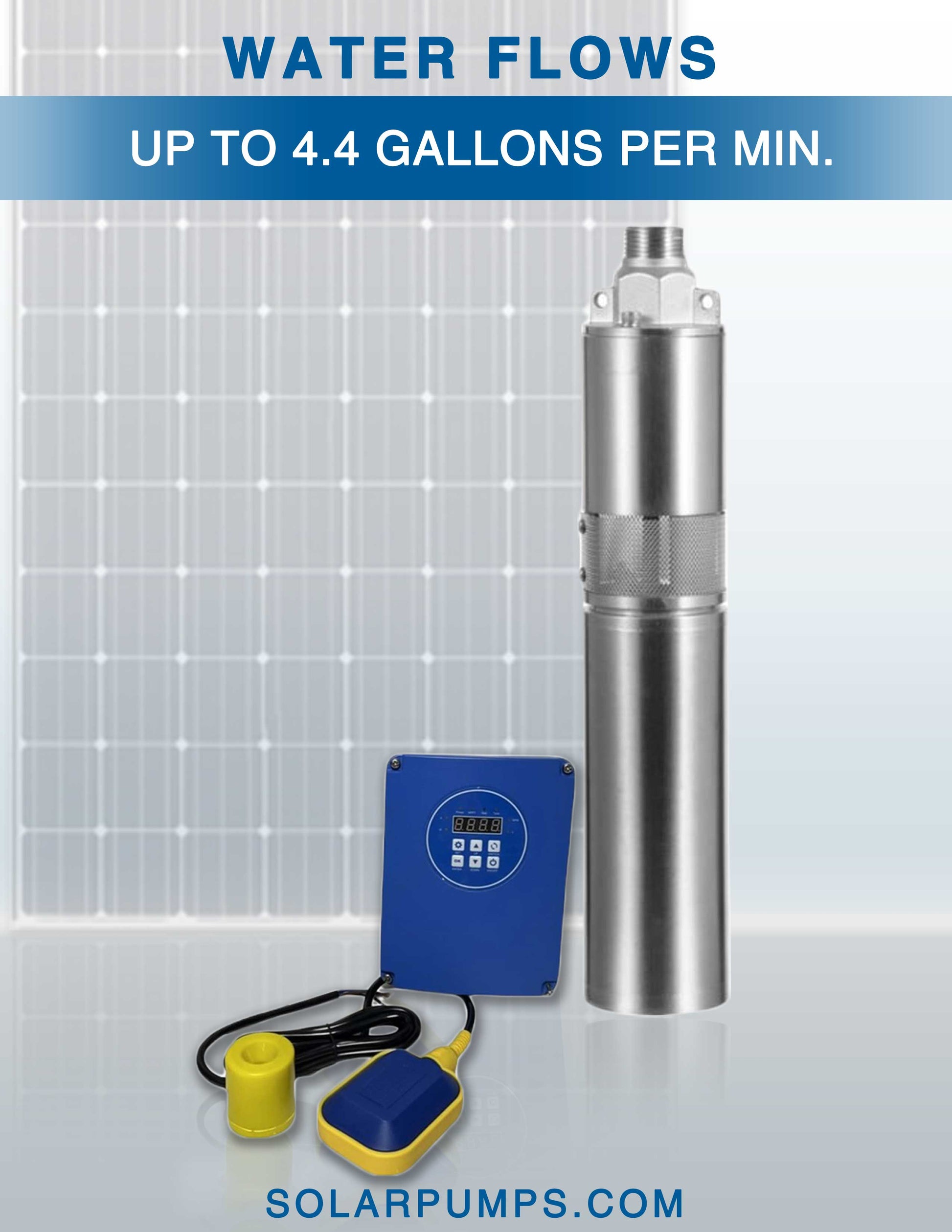

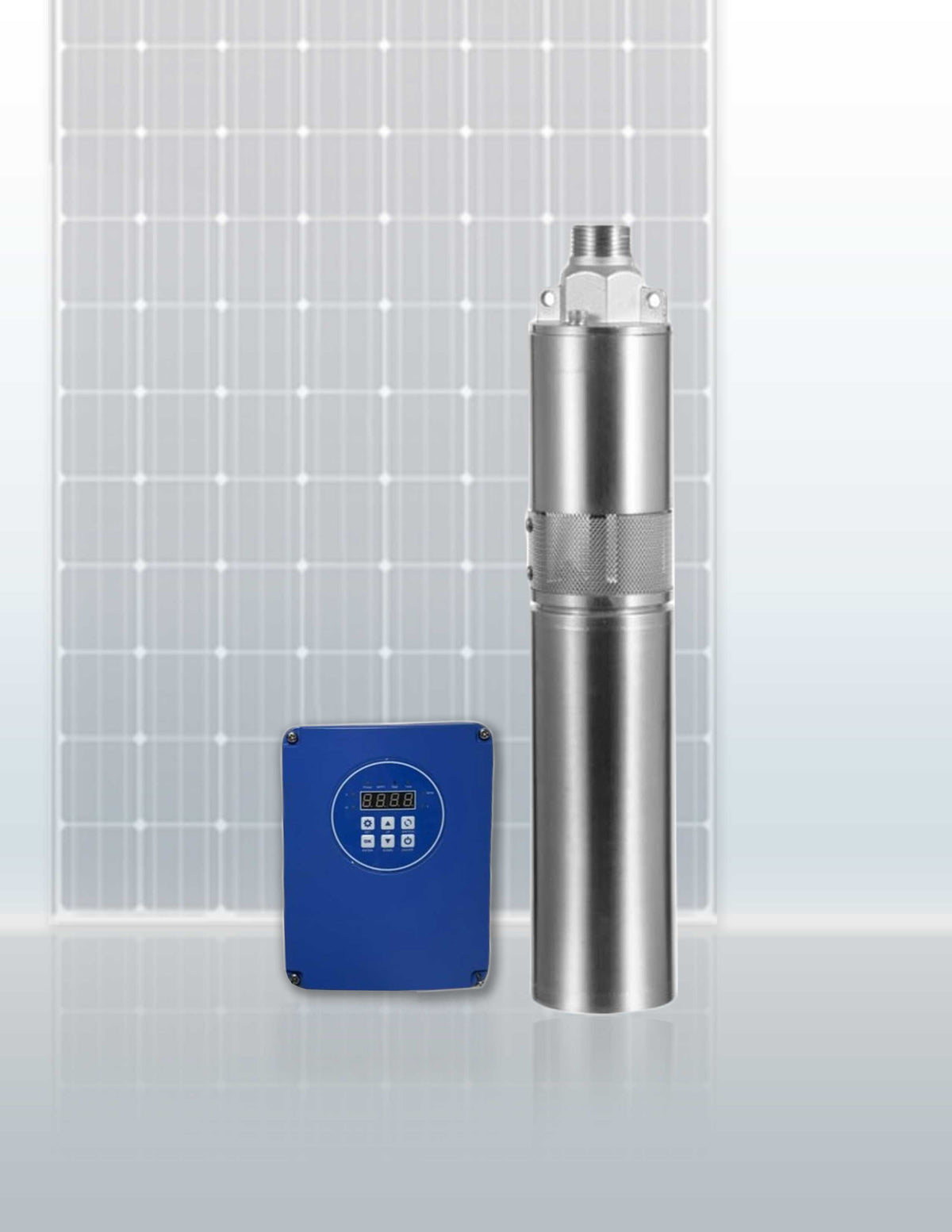

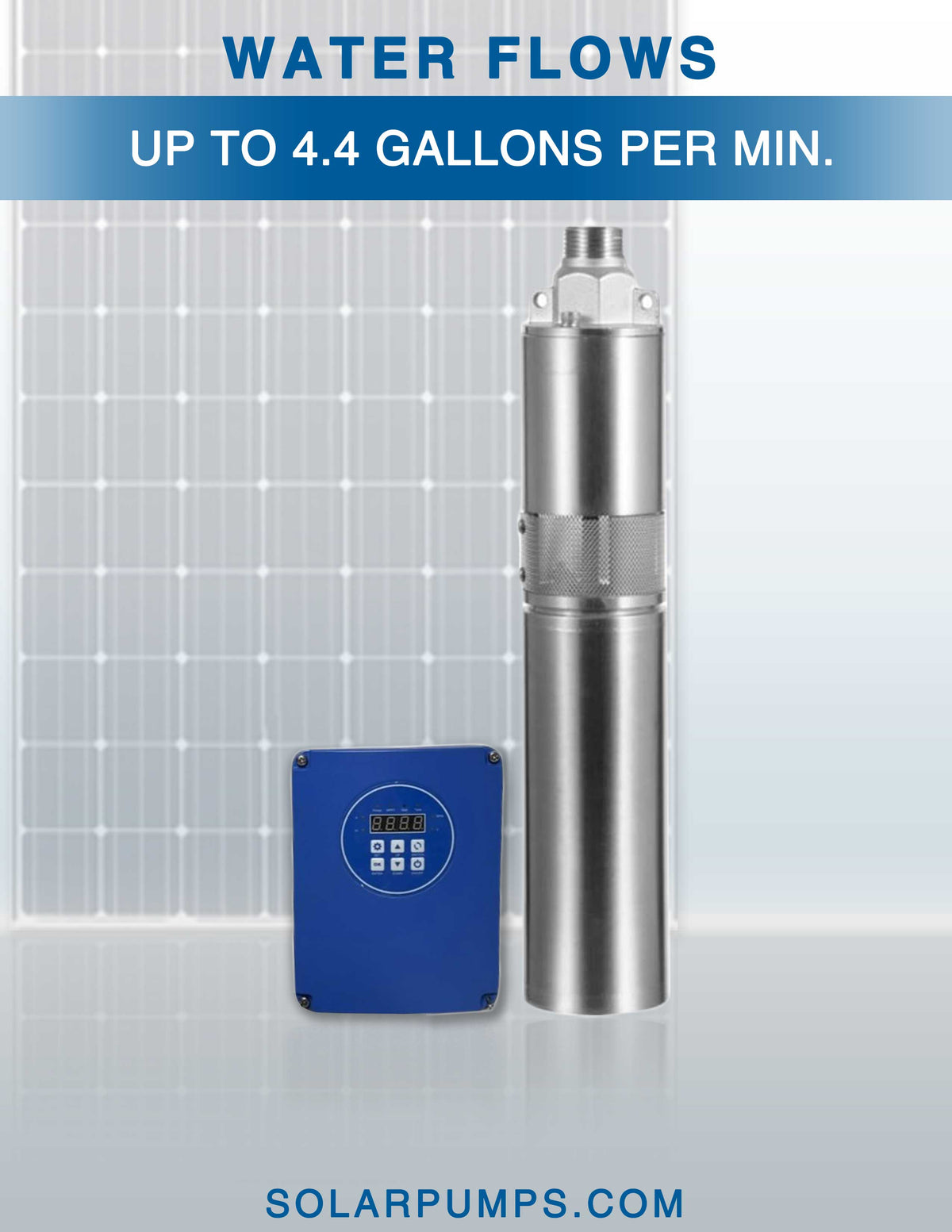

ECO-3H Pump

Contact a System Specialist with any questions - 1(866) 519-7892

Free Shipping to Continental USA (lower 48 States)

Features

• Pump heads are field serviceable/replaceable by customer or OEM!
• External motor controller with built in MPPT tracking, power fusing and speed adjustment.
• Digital readout displays voltage, current, wattage, speed, and error reporting.
• High efficiency DC Brushless motor with stainless steel Encapsulated Thrust Bearing.
• Microcast AISI 304 stainless steel helical rotor wet end adopts special wear-resistant rubber and hardened rotary shaft for increased wear resistance and service life.
• Well Level Controller (sump switch) included with pump to prevent dry run.
• Inputs for Tank Level Control (Float switch optional)
• Battery or Generator Backup Optional (must be 24V DC minimum)
• Over/under-load protection.
• Over/under-voltage protection.
• Over-Temperature Protection.
• Lost phase and stall protection.
• Lightening and Surge Protection.
• Can be used with most switch types (float, pressure switch, etc.) Vertical or horizontal installation up to 90°.
• Certifications: CE, TUV SUD, UL, ISO9001, ISO14001

Specifications

• System Input Voltage 18-40V (48V Max)

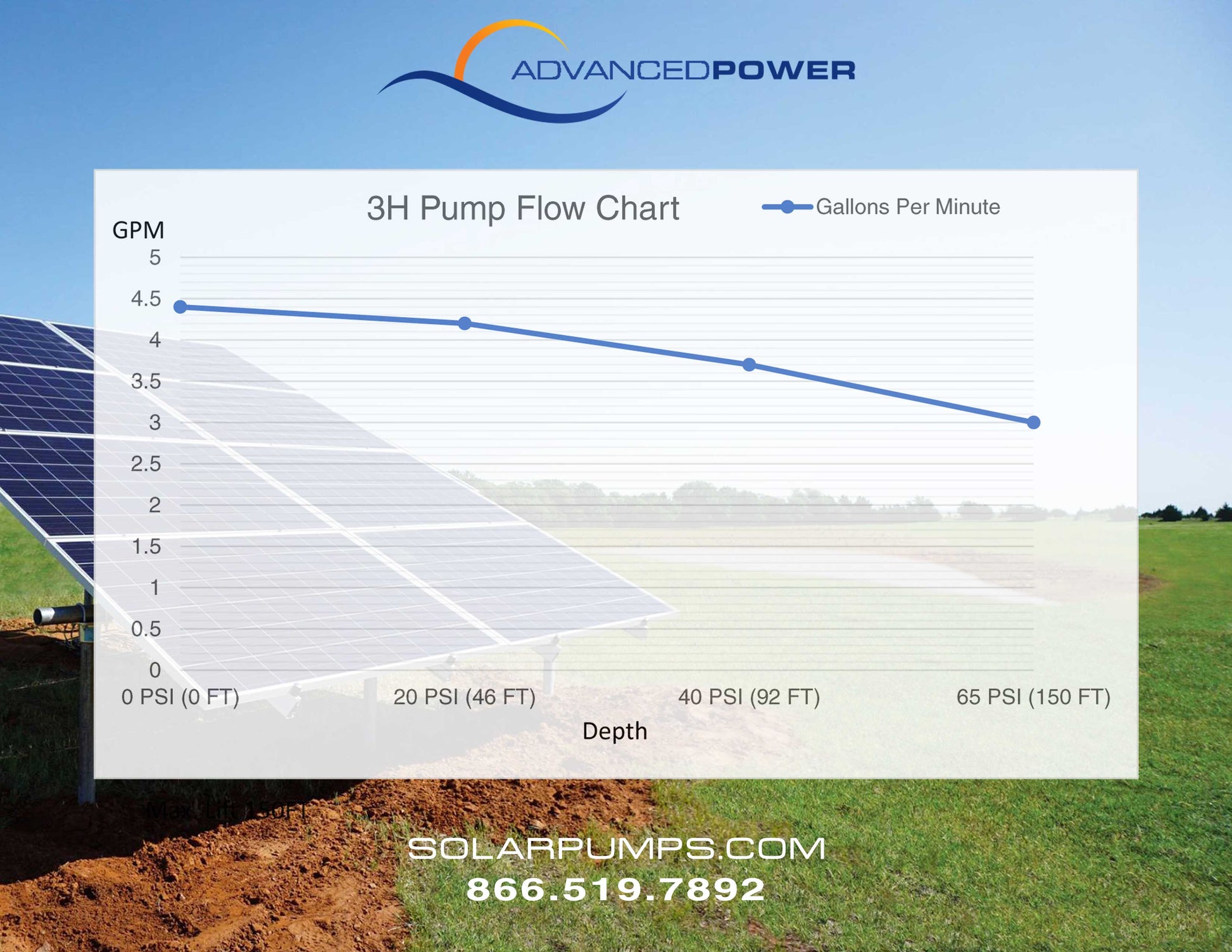

• 5 GPM (Max Flow Rate)
• Max Pressure is 65psi including lift (adding pressure tank/switch will alter max lift)
• 2 year Manufacturer Defect Standard Warranty
• 304 Stainless Steel Construction

• 1-1/4in NPT Female Pump Outlet
• In-House Tech Service

Requirements

• 300W Minimum recommended Input Power
• Plumbing from pump to final termination point

Considerations

Water conditions and pipe size will alter PSI rating. Hard, dirty water, undersized/kinked pipe, rubber vs. plastic pipe all effect the output performance of the pump/system.
