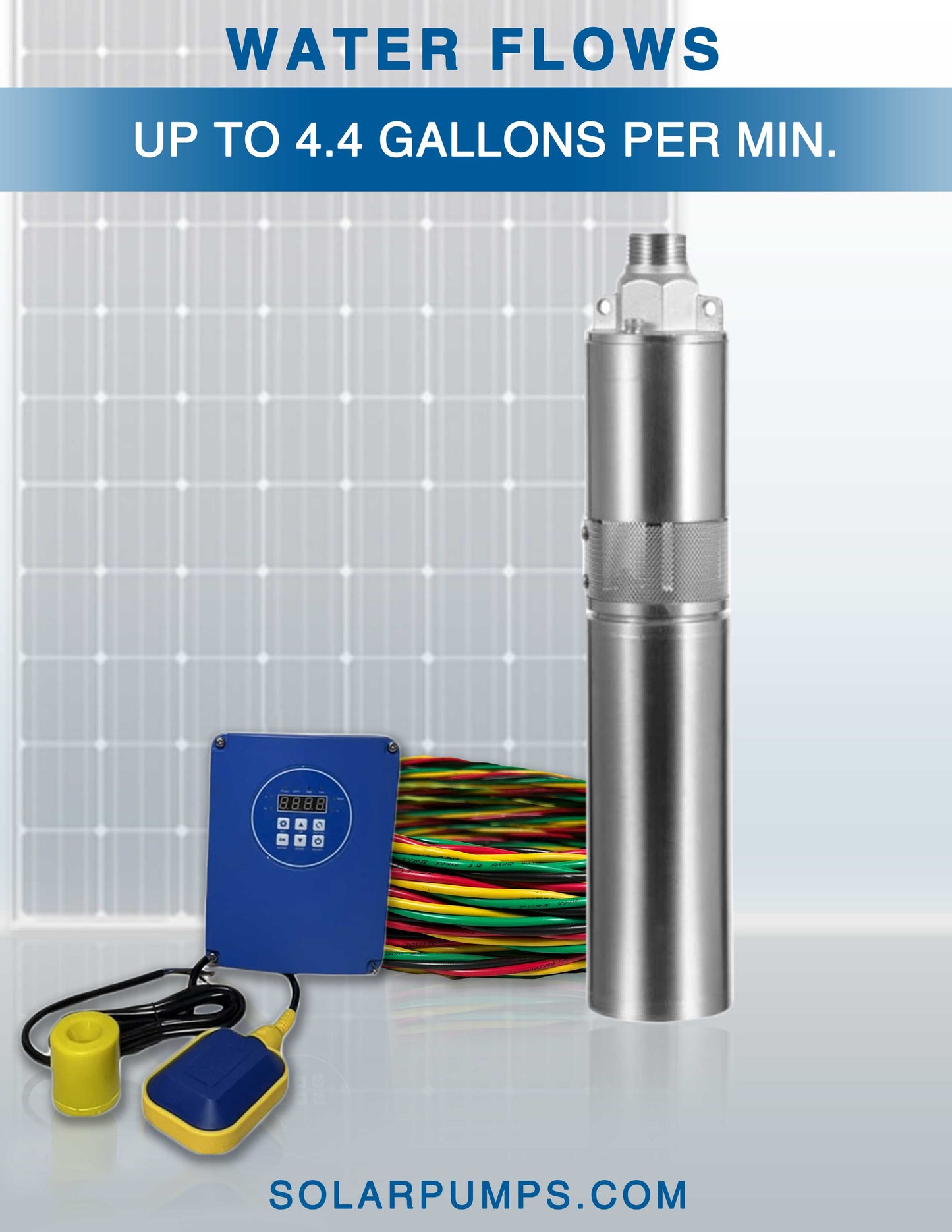

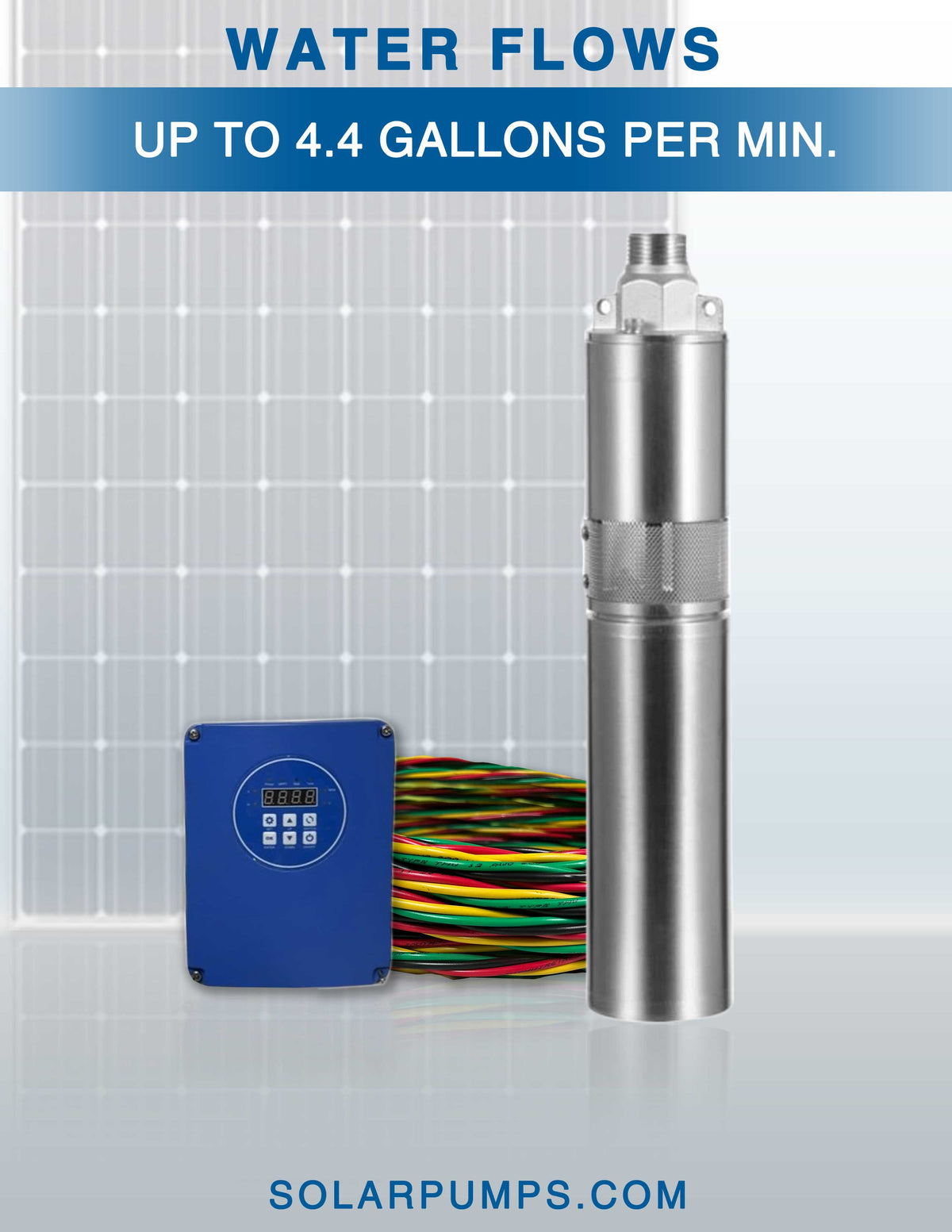

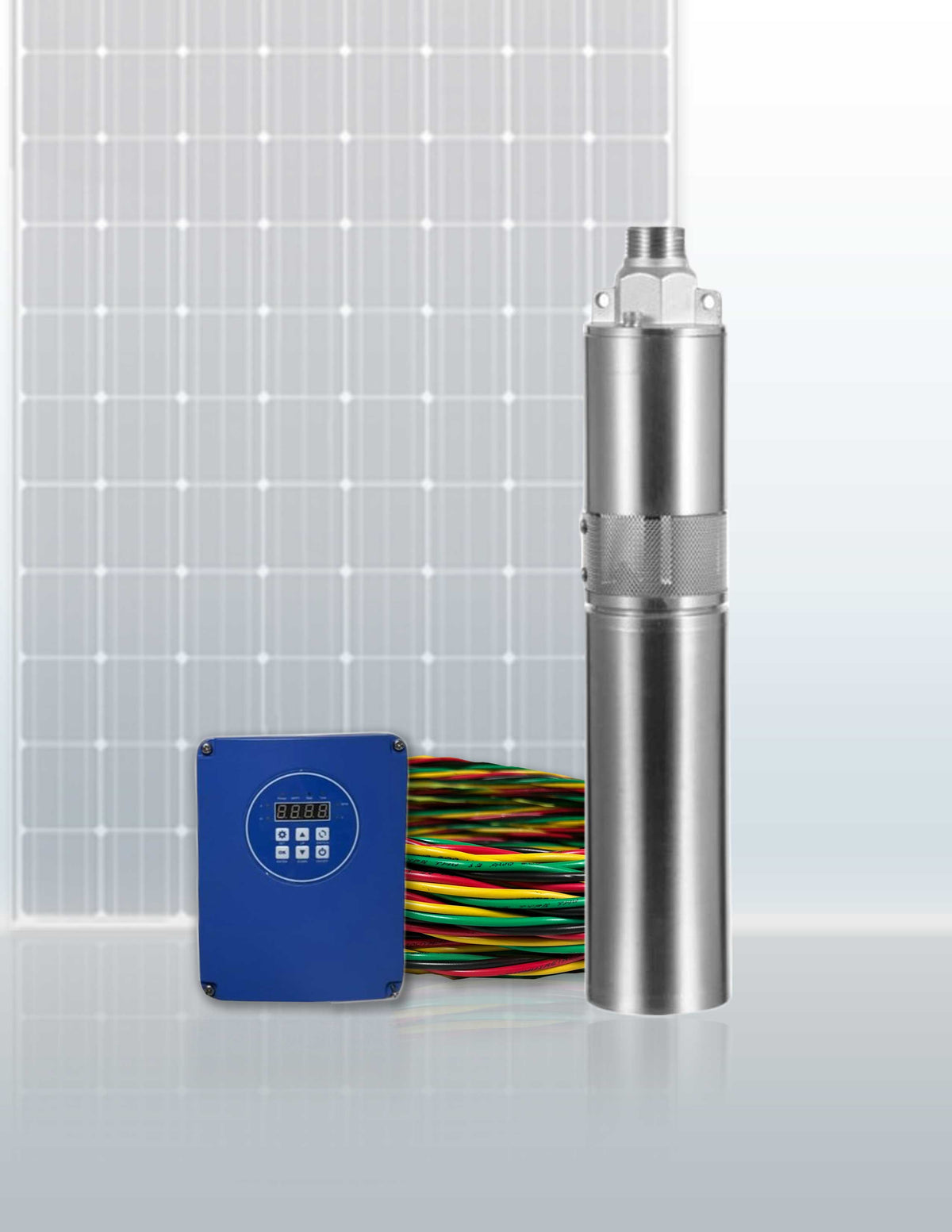

ECO-3H Pump & 100ft Electrical Cable

Description

The ECO-3H Pump is a high-efficiency solar submersible pump designed for agricultural, residential, and industrial use. With its durable construction and advanced features, this pump is perfect for deep well applications, providing reliable water access even in remote areas.

Key Features

• Field Serviceable Pump Heads: Easily replaceable by customers or OEM, ensuring long-term usability and reduced maintenance costs.
• External Motor Controller: Includes built-in MPPT tracking, power fusing, and speed adjustment for optimal performance.
• Digital Readout: Displays voltage, current, wattage, speed, and error reports, allowing for easy monitoring and troubleshooting.
• High-Efficiency DC Brushless Motor: Features a stainless steel encapsulated thrust bearing for enhanced durability and performance.
• Stainless Steel Helical Rotor: Constructed with Microcast AISI 304 stainless steel and wear-resistant rubber for increased service life.
• Well Level Controller: Prevents dry run by shutting off the pump when water levels are low.
• Optional Inputs: Supports tank level control with an optional float switch.
• Battery or Generator Backup: Compatible with 24V DC minimum backup systems.
• Comprehensive Protection: Includes over/under-load protection, over/under-voltage protection, over-temperature protection, lost phase and stall protection, as well as lightning and surge protection.
• Versatile Installation: Can be installed vertically or horizontally up to 90° and used with most switch types (float, pressure switch, etc.).
• Certifications: CE, TUV SUD, UL, ISO9001, ISO14001 certified.

Specifications

• Input Voltage: 18-40V (48V Max)
• Max Flow Rate: 5 GPM
• Max Pressure: 65 psi (including lift, adjustable with pressure tank/switch)
• Construction: 304 Stainless Steel

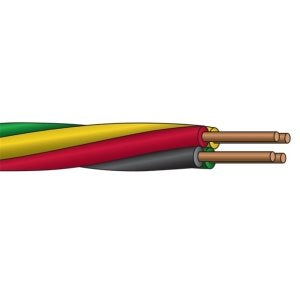

• Pump Cable: 100FT 12/3 solid core twisted included
• Pump Outlet: 1-1/4in NPT Female Thread
• Warranty: 2-year manufacturer defect standard warranty
• Technical Support: Available in-house

Requirements

• Power: Minimum recommended input power is 300W.
• Plumbing: Requires plumbing from the pump to the final termination point.
• Mounting: Requires a 2 7/8” OD x 10’6” SCH40 pole for top-of-pole mounting.

Considerations

Water conditions and pipe size will affect the PSI rating. Hard or dirty water, undersized or kinked pipes, and the type of pipe material (rubber vs. plastic) can impact the pump's performance.

Upgrade to the ECO-3H Pump for a reliable and efficient water pumping solution that meets the highest standards of durability and performance. Contact a System Specialist with any questions - 1(866) 519-7892
