3H100S System

Part#3H100S

Description

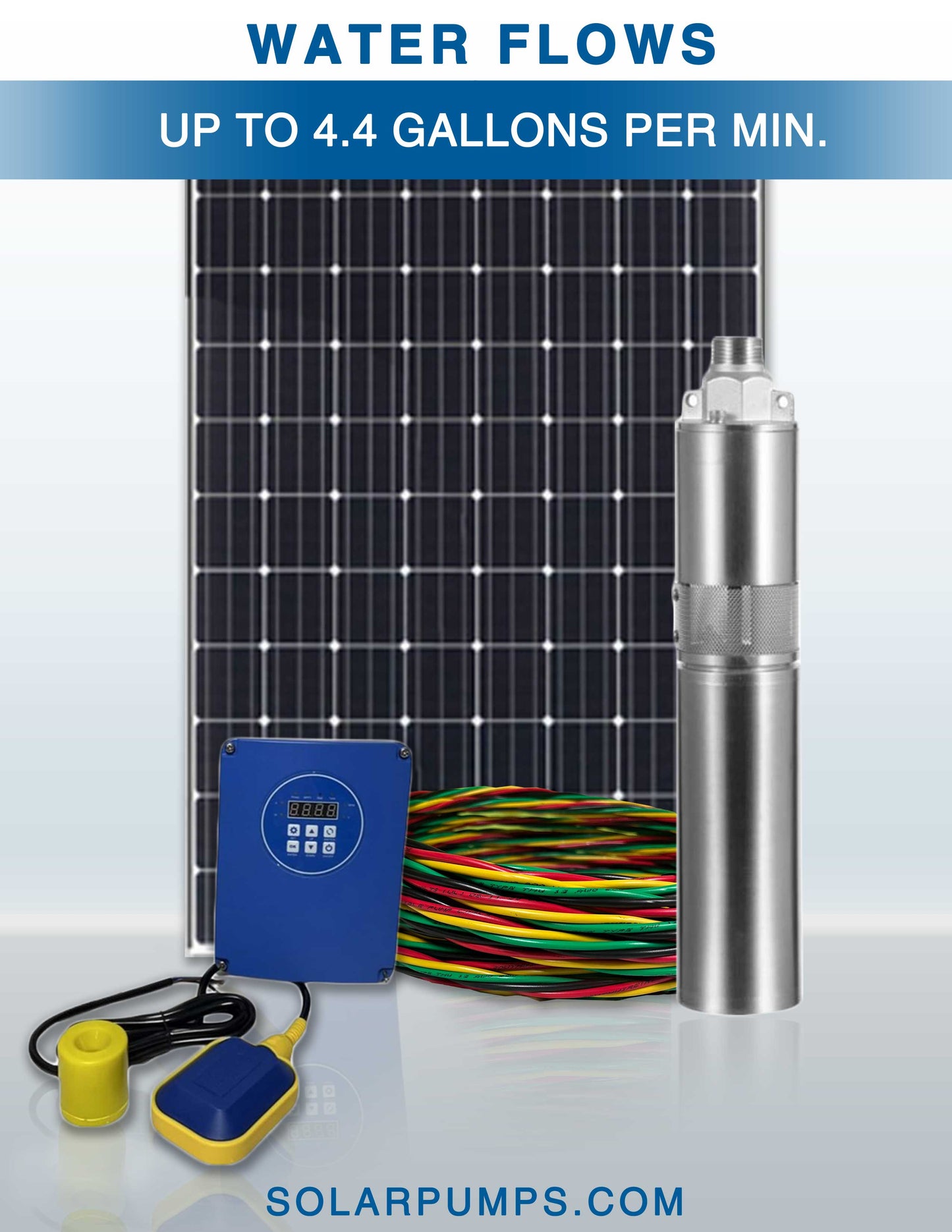

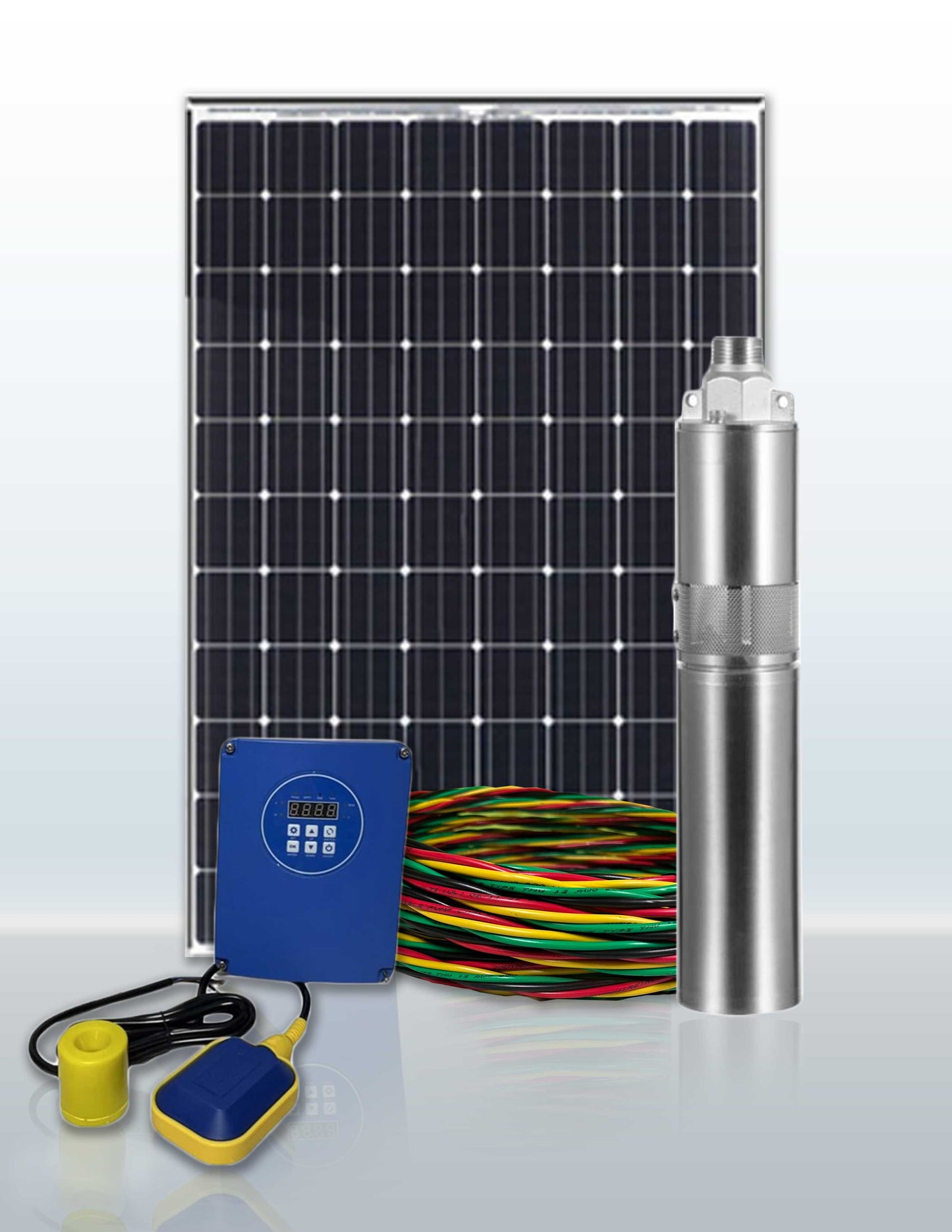

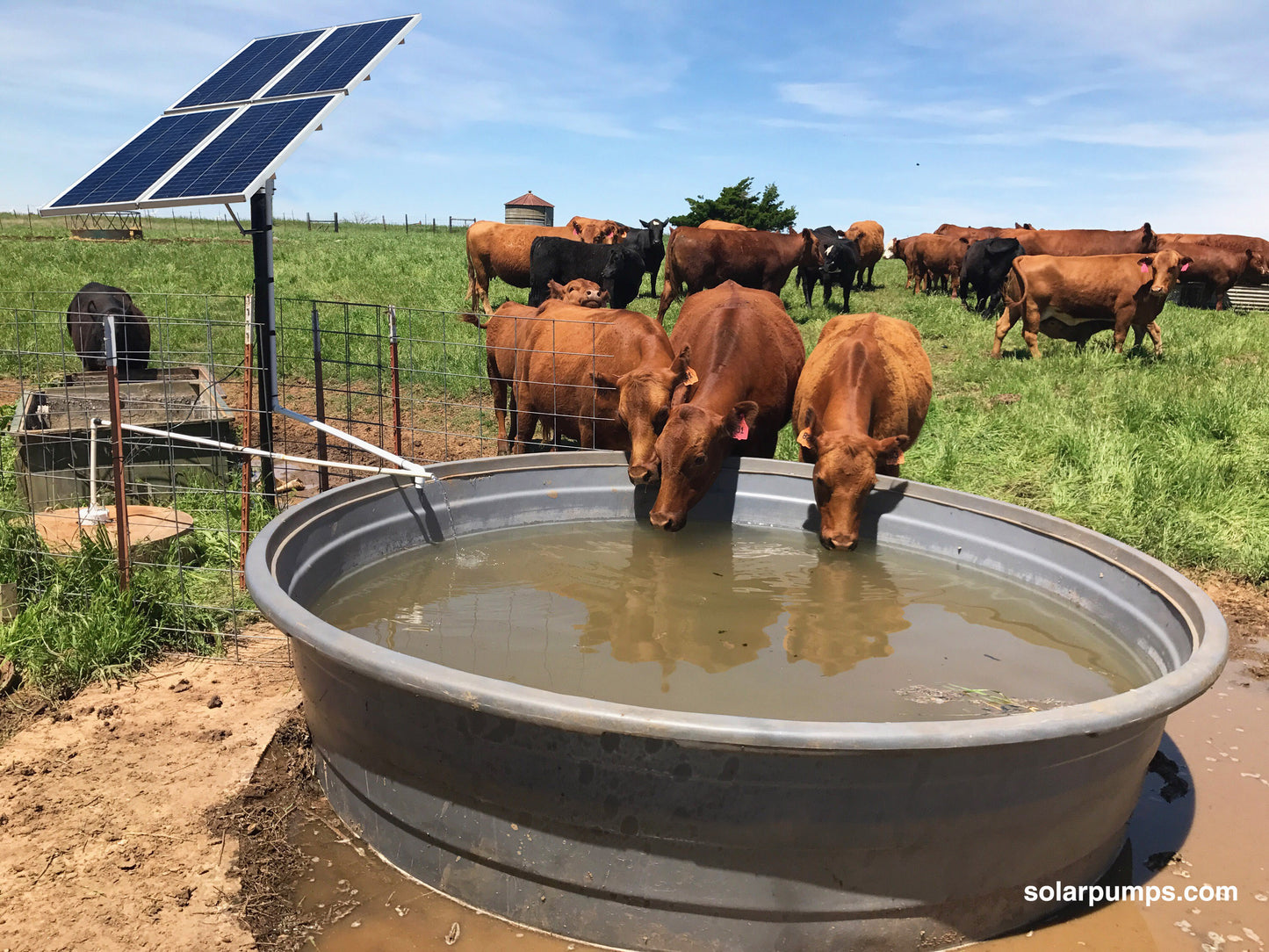

The 3H System is a high-efficiency solar water pump system designed to meet the needs of agricultural, residential, and industrial applications. This system combines robust construction with advanced features to ensure reliable water access, even in remote and off-grid locations.

Key Features

• Field Serviceable Pump Heads: Easily replaceable by customers or OEM, reducing maintenance costs and downtime.
• External Motor Controller: Includes built-in MPPT tracking, power fusing, and speed adjustment for optimal performance.
• Digital Readout: Provides real-time displays of voltage, current, wattage, speed, and error reporting for easy monitoring and troubleshooting.
• High-Efficiency DC Brushless Motor: Equipped with a stainless steel encapsulated thrust bearing for enhanced durability and performance.
• Stainless Steel Helical Rotor Wet End: Constructed with Microcast AISI 304 stainless steel and special wear-resistant rubber for increased service life.
• Well Level Controller: Included with the pump to prevent dry run and protect the system.
• Optional Inputs: Supports tank level control with an optional float switch.
• Battery or Generator Backup: Compatible with 24V DC minimum backup systems.
• Comprehensive Protection: Includes over/under-load protection, over/under-voltage protection, over-temperature protection, lost phase and stall protection, as well as lightning and surge protection.
• Versatile Installation: Can be installed vertically or horizontally up to 90° and used with most switch types (float, pressure switch, etc.).
• Certifications: CE, TUV SUD, UL, ISO9001, ISO14001 certified.

Solar Panel Features

• High Performance: Uses specifically selected technologies and materials for high efficiency.
• Positive Power Tolerance: Ranges from 0-5 Wp, ensuring higher guaranteed yield.
• Durability: Withstands snow loads up to 113 psf and has a stable module life in extreme conditions.
• Quality Assurance: 100% electroluminescence inspection ensures no micro-cracks or hot spots.
• Robust Construction: Features a soft grip seam aluminum frame for higher stability and easier handling.
• Long-Term Warranty: 15 years manufacturer’s guarantee on 90% of nominal performance and 25 years on 85%.

Specifications

• Input Voltage: Operating 20-40V  & Open Circuit 48V Max)

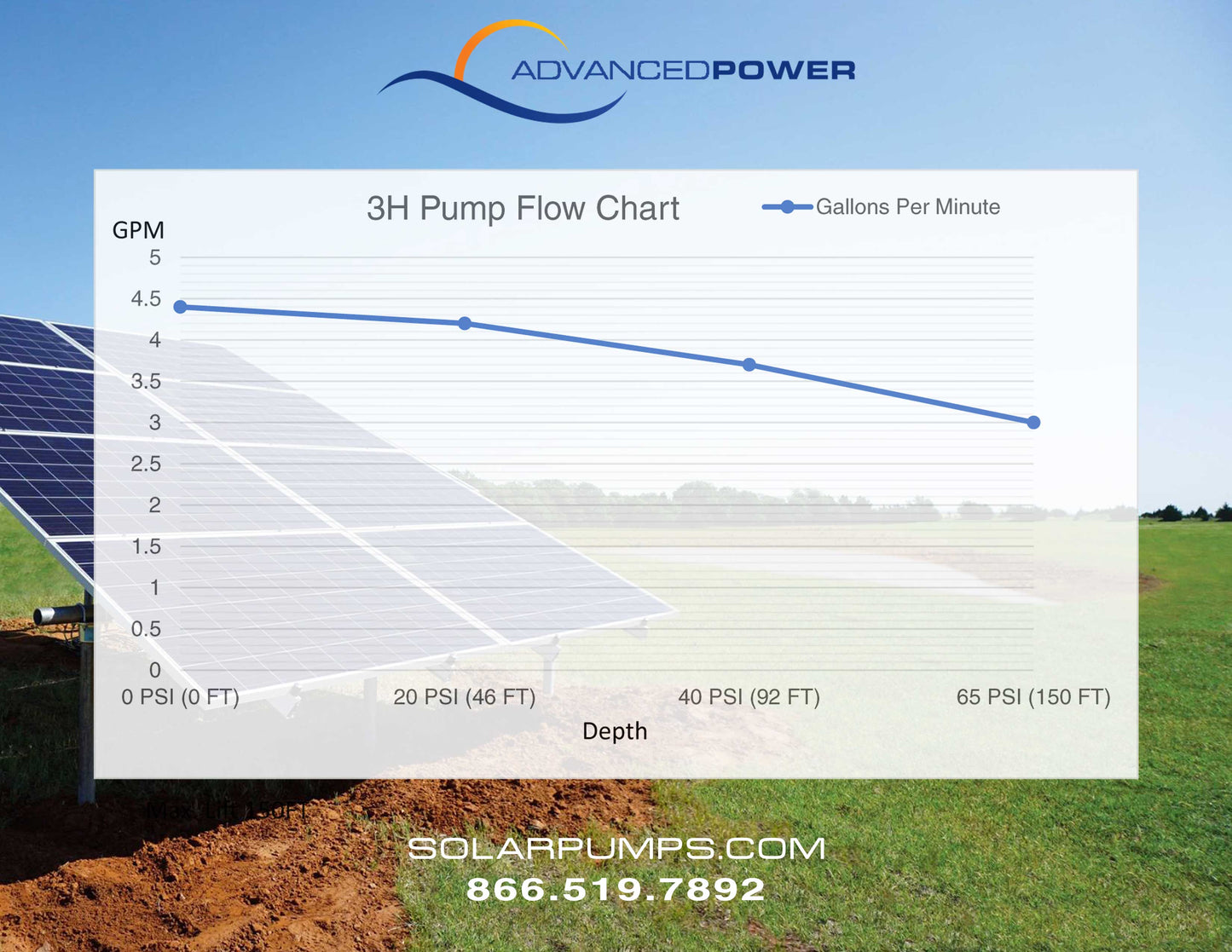

• Max Flow Rate: 4.4 GPM
• Max Lift: 150FT or 65 PSI max

• Construction: 304 Stainless Steel
• Pump Cable: 100ft 12/3 solid core twisted standard
• Pump Outlet: 3/4in NPT Female Thread
• Solar Panel: Power ranges between 300+Watts due to availability
• Warranty: 2-year manufacturer defect standard warranty additional available
• Technical Support: Available in-house

Requirements

• Power: Minimum recommended input power is 200 Watts
• Plumbing: Requires plumbing from the pump to the final termination point.

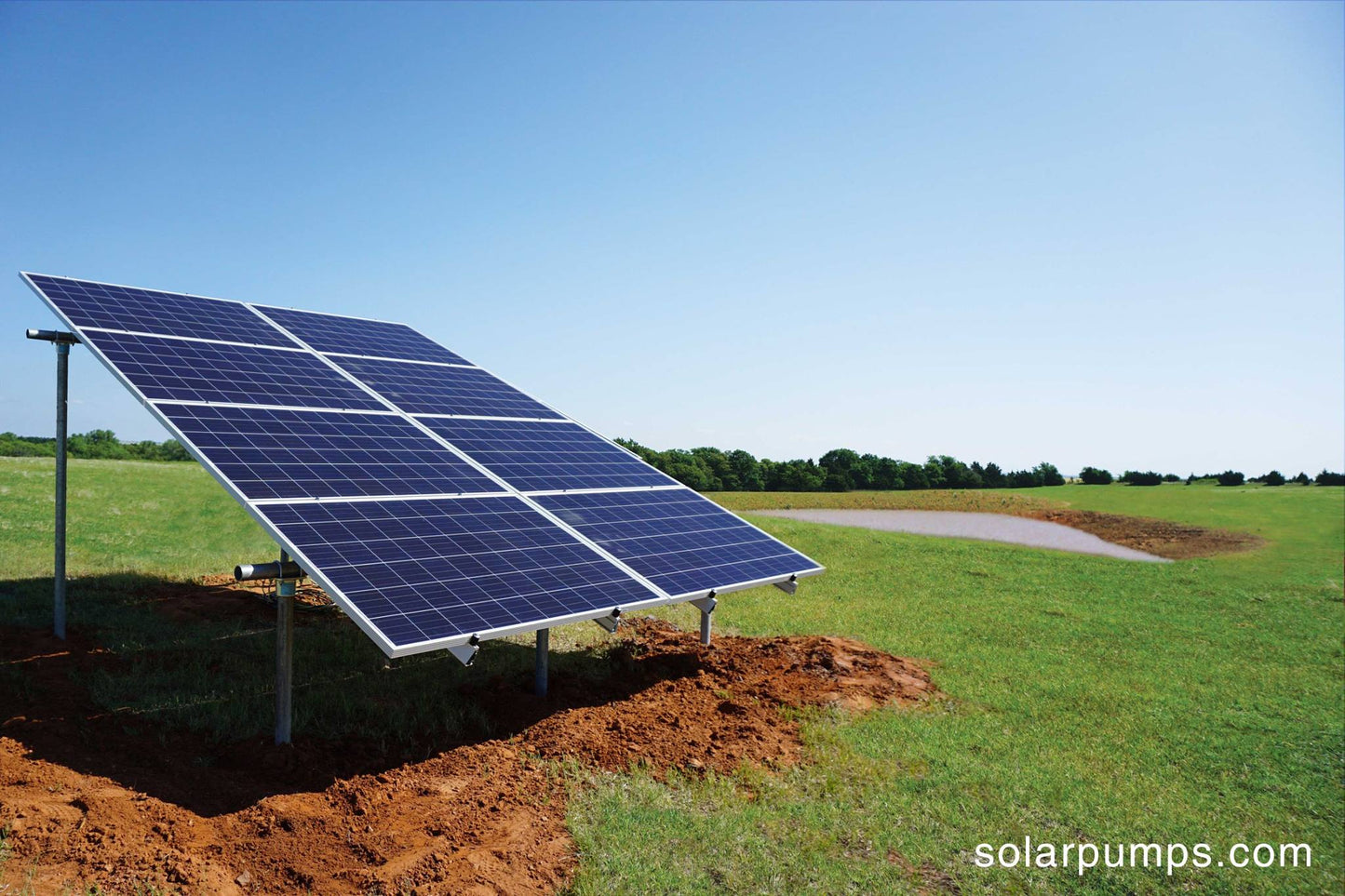

• Top of Pole Mounting: Requires a 2-7/8in OD x 10ft 6in SCH40 pole concreted in a hole 3 ft. deep X 18in Diameter

Water conditions and pipe size will affect the PSI rating. Hard or dirty water, undersized or kinked pipes, and the type of pipe material (rubber vs. plastic) can impact the pump's performance.

Upgrade to the 3H System for a reliable and efficient water pumping solution that meets the highest standards of durability and performance. Contact a System Specialist with any questions - 1(866) 519-7892

Instruction Manual
