ECO-3C Pump & 100ft. Electrical Cable

PRE-ORDERS ONLY AT THE MOMENT!

PRE-ORDERS ONLY AT THE MOMENT!

Description

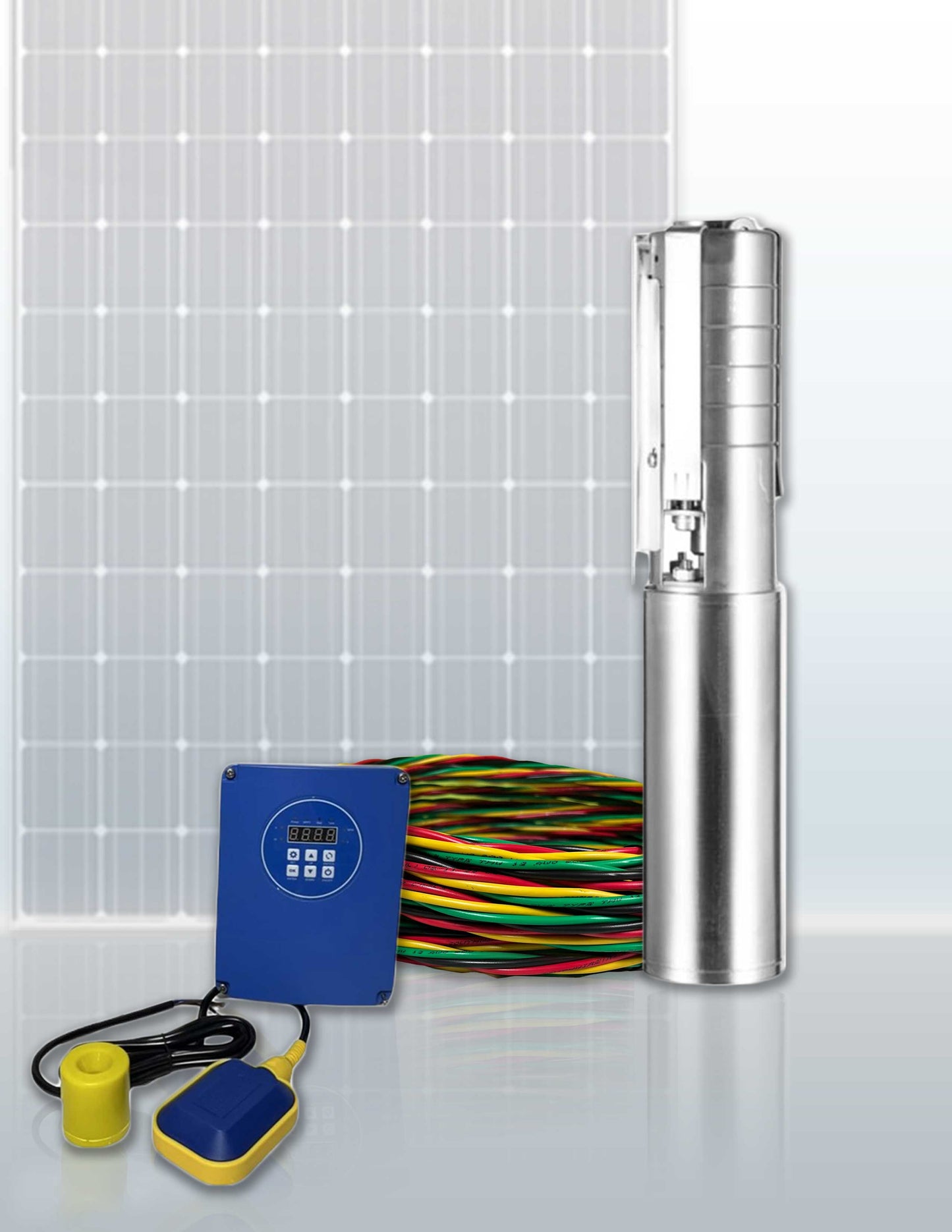

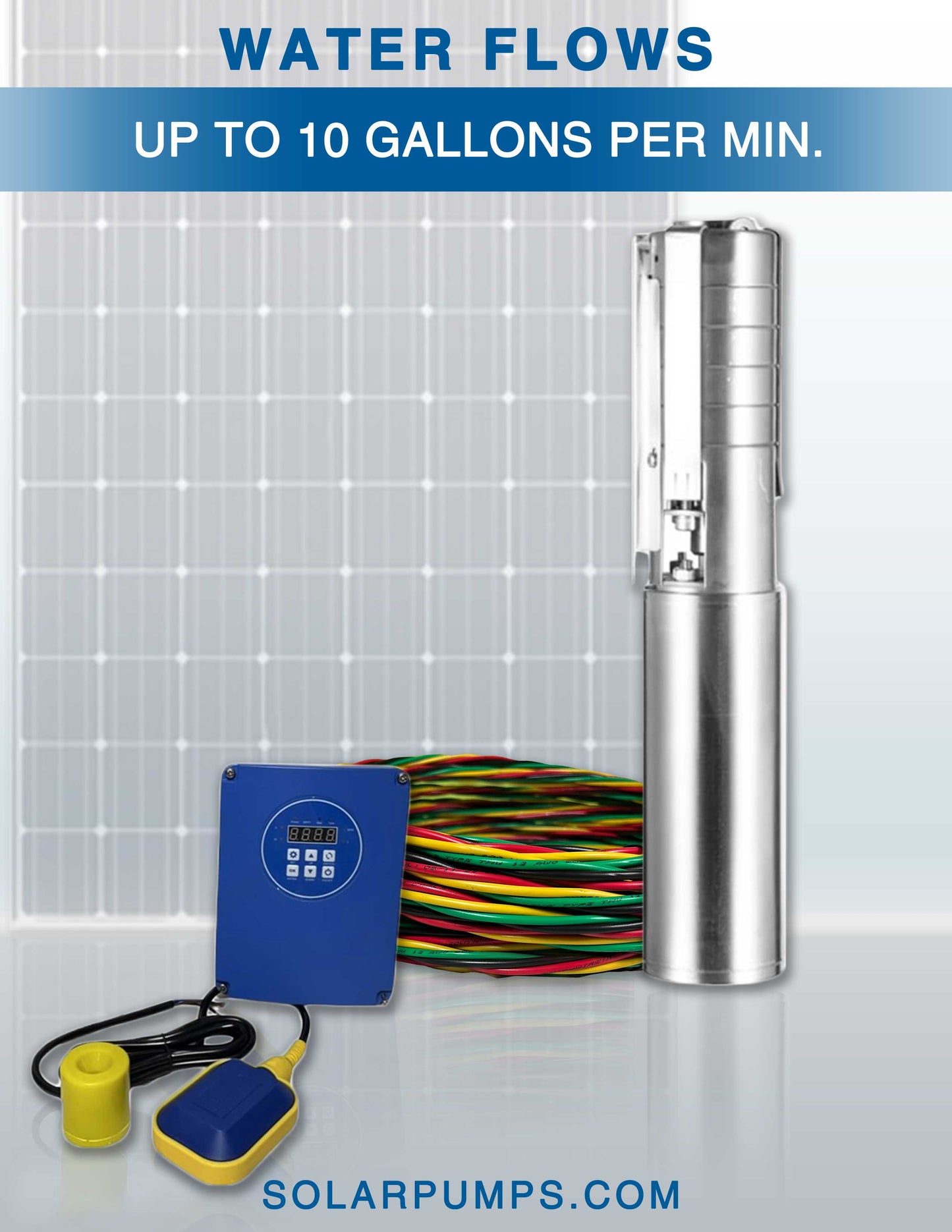

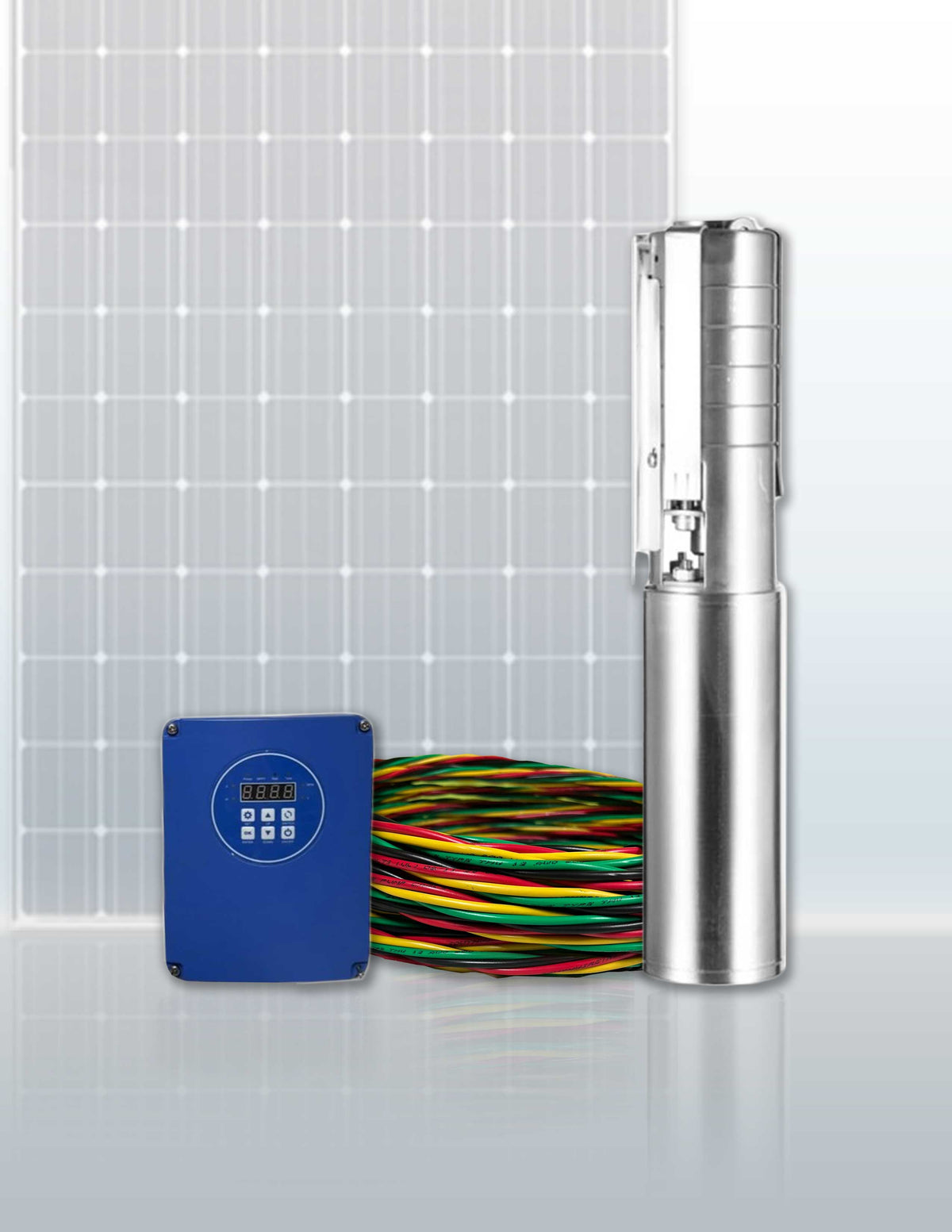

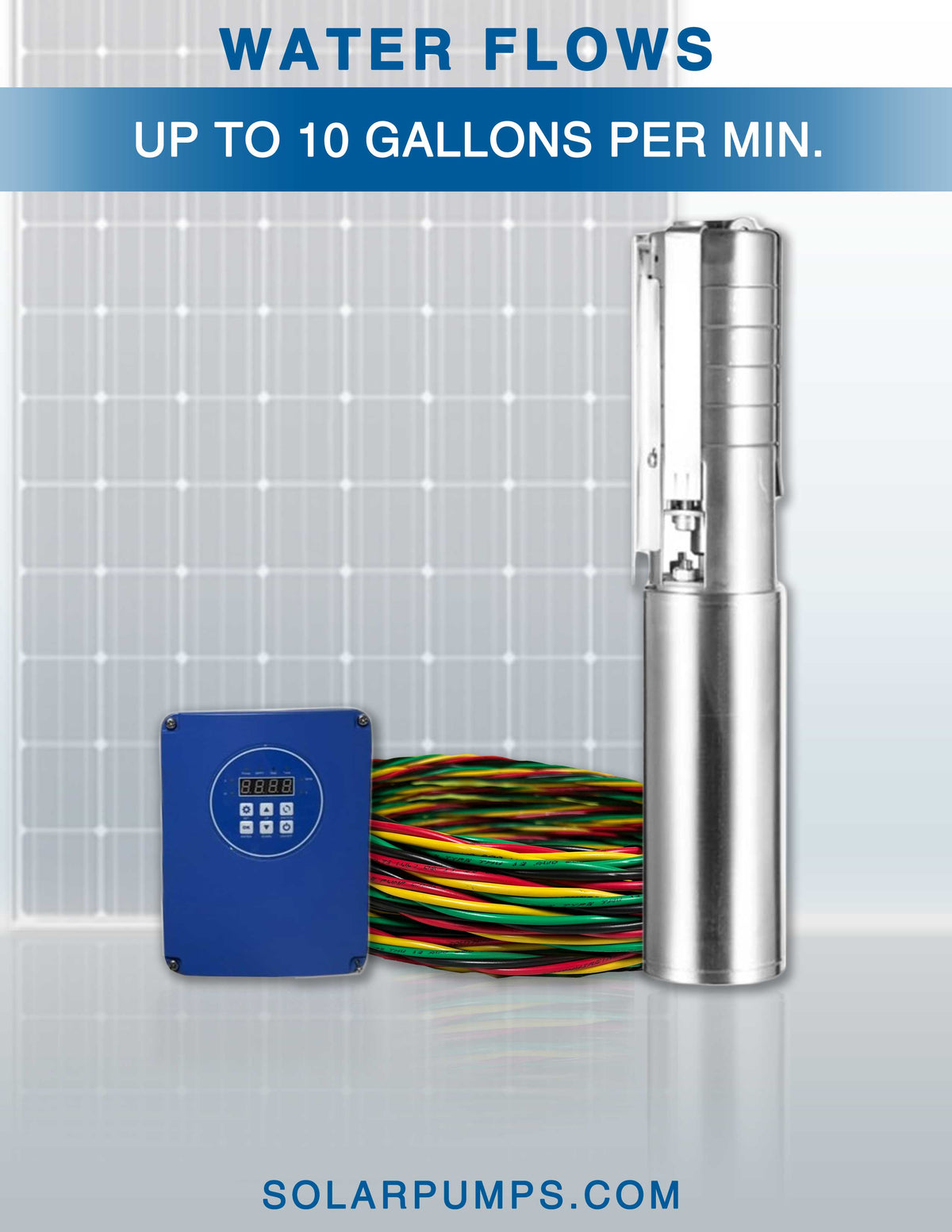

The ECO-3C Pump is a high-efficiency solar centrifugal pump designed for a variety of applications including agricultural, residential, and industrial use. With its robust construction and advanced features, this pump ensures reliable water access even in remote locations.

Key Features

• Field Serviceable Pump Heads: Easily replaceable by customers or OEM, reducing maintenance costs and downtime.
• External Motor Controller: Includes built-in MPPT tracking, power fusing, and speed adjustment for optimal performance.
• Digital Readout: Provides real-time displays of voltage, current, wattage, speed, and error reporting for easy monitoring and troubleshooting.
• High-Efficiency DC Brushless Motor: Equipped with a stainless steel encapsulated thrust bearing for enhanced durability and performance.
• Stainless Steel Centrifugal Wet End: Features multistage impellers with rigid motor coupling, made from Microcast AISI 304 stainless steel for increased service life.
• Well Level Controller: Included with the pump to prevent dry run and protect the system.
• Optional Inputs: Supports tank level control with an optional float switch.
• Battery or Generator Backup: Compatible with 24V DC minimum backup systems.
• Comprehensive Protection: Includes over/under-load protection, over/under-voltage protection, over-temperature protection, lost phase and stall protection, as well as lightning and surge protection.
• Versatile Installation: Can be installed vertically or horizontally up to 90° and used with most switch types (float, pressure switch, etc.).
• Certifications: CE, TUV SUD, UL, ISO9001, ISO14001 certified.

Specifications

• Input Voltage: 18-40V (48V Max)
• Max Flow Rate: 22 GPM
• Max Pressure: 25 psi (including lift, adjustable with pressure tank/switch)
• Construction: 304 Stainless Steel
• Pump Cable: 100FT 12/3 solid core twisted included
• Pump Outlet: 1-1/2in NPT Female Thread
• Warranty: 2-year manufacturer defect standard warranty
• Technical Support: Available in-house

Requirements

• Power: Minimum recommended input power is 300W.
• Plumbing: Requires plumbing from the pump to the final termination point.

Considerations

Water conditions and pipe size will affect the PSI rating. Hard or dirty water, undersized or kinked pipes, and the type of pipe material (rubber vs. plastic) can impact the pump's performance.

Upgrade to the ECO-3C Pump for a reliable and efficient water pumping solution that meets the highest standards of durability and performance. Contact a System Specialist with any questions - 1(866) 519-7892
